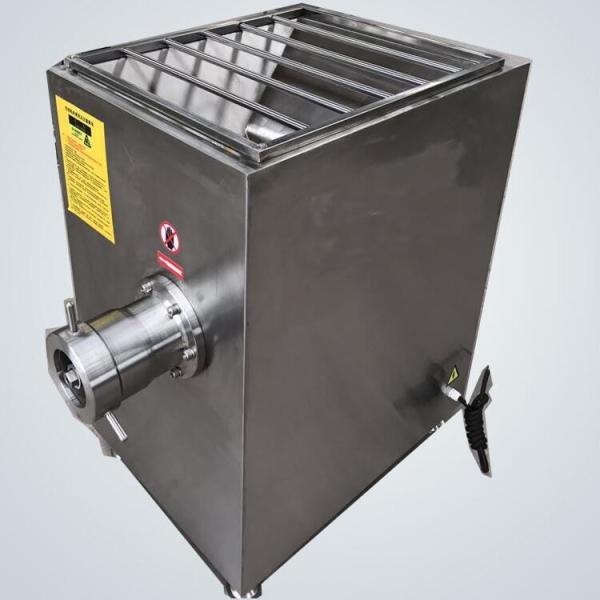

Automatic Electric Meat Processing Machine Fresh Meat / Frozen Meat Grinder

    Buy cheap Automatic Electric Meat Processing Machine Fresh Meat / Frozen Meat Grinder from wholesalers

    Buy cheap Automatic Electric Meat Processing Machine Fresh Meat / Frozen Meat Grinder from wholesalers
    • Buy cheap Automatic Electric Meat Processing Machine Fresh Meat / Frozen Meat Grinder from wholesalers
    • Buy cheap Automatic Electric Meat Processing Machine Fresh Meat / Frozen Meat Grinder from wholesalers

    Automatic Electric Meat Processing Machine Fresh Meat / Frozen Meat Grinder

    Ask Lasest Price
    Brand Name : Lingmai
    Model Number : LMMG
    Certification : CE, SGS, BV, CQC, SONCAP
    Price : USD: 2,000~5,000/Set; EURO: 1,755~4,385/Set; GBP: 1,560~3,900/Set
    Payment Terms : T/T, LC At Sight, Paypal, Western Union, MoneyGram
    Supply Ability : 500 Sets/month
    Delivery Time : 3~20 Working Days
    MOQ : 1 Set
    • Product Details
    • Company Profile

    Automatic Electric Meat Processing Machine Fresh Meat / Frozen Meat Grinder

    Automatic Electric Fresh Meat & Frozen Meat Grinder for Meat Processing Machine


    Product Description:


    Fresh Meat & Frozen Meat Grinder is a kind of very popular machine for food processing in food industry field. It can be used for fresh meat processing, frozen meat processing, vegetable processing, fish processing etc.


    Operational Principle:

    1. Replying on the screw to push various raw material into Cutting Plate

    2. Then the pressure of the screw rotation will make the plate and grind cutter run, which cut

    raw materials into small pieces insuring the evenness of the meat.

    3. Finally, the finished ground meat or minced materials will be pushed out from the hole plate.

    4. Different stuffing can be produced as per different requirements, by changing different types knives and different size hole plates.

    Advantages:

    1. The biggest advantage is that it will not destroy the original fiber tecture of raw materials.

    What’s more, the whole produce time is shorter, from food raw material to completed products, it can excellently reduce the temperature raising of food raw materials and keep

    their natural quality & tasty.

    2. Made of Food-contact Grade stainless steel SUS304, fully satisfy to HACCP Standard and

    GMP Standard. Easy to clean.

    3. Higher efficiency, and save working time & labor.

    4. Smaller Power Capacity, saving electricity, lower cost

    5. Reasonable design for the auger shaft lead, with high rational speed

    6. Larger size for feeding inlet Hopper, easy to feed food raw materials,

    7. Faster discharging process, & high efficiency of output.

    Technical Parameters:

    Medium Models

    ModelLMMG-140LMMG-150LMMG-160
    Produce Capacity2,000~2,500kg/h2,500~3,000kg/h3,500~4,000kg/h
    Power Capacity15kW17kW20kW
    Auger Rotation Speed240/rpm240/rpm240/rpm
    Plate Holes Diameters4~30mm4~30mm4~30mm
    V/F50 Hz (Voltage Frequency)
    Rated Voltage220V, Single-Phase;or 380V, 3-Phase
    Adaptable Voltage Range

    220V, Single-Phase:

    220V~235V (Max. +7%); 198v~220V (Min. -10%)

    380V, 3-Phase:

    380v~407V (Max. +7%); 353V~380V (Min. -7%)

    Dimensions1450*800*1350mm1,500*850*1,400mm1,550*900*1,450mm
    Weight500kg600kg700kg

    *The Produce Capacity is mainly depended on the different hole sizes of hole plate and temperature of meat or other food raw materials.

    Generally speaking, the bigger of the plate holes, the Produce Capacity will be more. The lower temperature of frozen food raw materials, the Produce Capacity will be less.

    Details Display:

    Safety FenceFeeding HopperAuger
    OutletKnives & Hole Plates

    Waterproof

    Push Button Switch

    Powerful Motor

    Supporting Structure

    for Auger

    Easy to Change

    Operation Effect from Client’s Factory

    2 Different Choices for Froze or Fresh Food Raw Materials
